Hole Puncher And Cutting Machine for PDMS Chips WH-CP-01

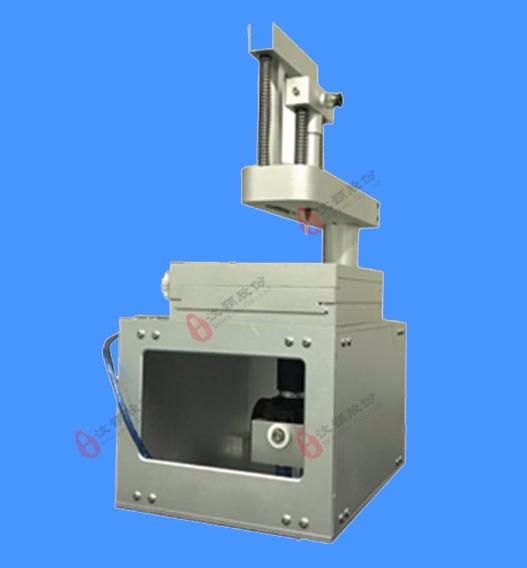

WH-CP-01 PDMS cutting and drilling machine is a PDMS cutting and drilling process integrated on a device to complete. Through the high-definition color industrial camera on the computer display imaging observation, adjusting the XY axis slide table improves the PDMS drilling and cutting position accuracy.
The machine can cut and punch both soft chips such as PDMS. The machine can fix the punch head and the cutting blade on the instrument’s upper part, and the blade’s height and the blade can be adjusted. The pressing handle can vertically punch holes and cut chips. Particularly important is that the instrument is equipped with a microscope, the region of drilling and cutting local amplification, in the X-Y axis fine-tuning device assisted in achieving precision cutting and positioning drilling. Cutting and drilling machine using mechanical structure design, with labor-saving, alignment is more convenient, reduce cutting is not neat, cutting edge burr, and so on.

1.1 Technical Parameters

Outside diameter: 0.7/0.8/0.9/1.07/1.26/1.47/1.66/1.8/2.1/2.4/3.0/3.45/4 mm
Blade cutting dimensions range: 60 * 60 mm table glass dimensions: 100 * 100 mm
Blade cutting thickness range: < 10mm
Needle hole thickness range: < 13 mm
Camera kit magnification: 30x
Dimensions: 260(L) * 200(W) * 416.5(h)
Weight: 7.0 kg
Working Environment: temperature 5 °C-40 °C, relative humidity < 80%

Standard punched needle list:
